                                   2 Colors Metal Enamel Dispensing Machine


Introduction:
Weldo Epoxy Doming dispensing machine is used to bi-component mirco-injection ,the machine is applied double vision location system, and replaces tranditional manual injection to dispense epoxy on hang tags , labels , stickers ect .


Features:
1、Intellignet one time scan, hundres of products can be locatedm one time processing;
2、Program in computer, easy to learn, 2-3 hours to get all skills ;
3、Double vision intelligent identifies craft's position and angle, the placement of craft can be arbitrarily arranged on worktable;
4、Intelligent optimiztion coloring path, increase of production;
5、Applied double working tables, non-stop running.The machine can process two different desings at one time;
6、The machine can dispense two different colors at one time;
7、Applied high speed dispensing gun system, maximum dispensing speed is 5 seconds,

8、Electronically controlled pressure regulating system , high accuracy and more stable dispensing gule.

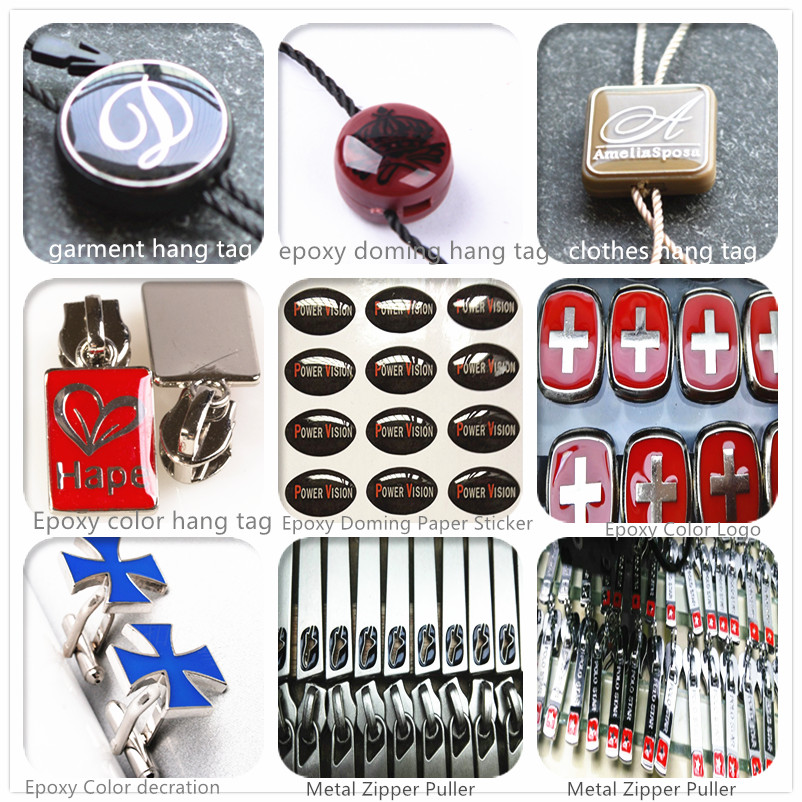

Application:

epoxy doming epoxy , epoxy pullers , epoxy coloring buttons, epoxy coloring keychains , epoxy doming stikers , bi-component electronic product and many others.


Parameter:

Model: WD2V2F-800
Material: soft enamel , epoxy resin , bi-compoent glue
Dispensing Color  2
Program computer program
Location Visual location without jig
Camera pixel 1300 million
Worktable two worktables
signle worktable size 400*300mm
scaning time 1-2s
running distance
X:800mm, Y:300mm,Z:60mm
total wotable size X:1120, Y:720mm
speed 60000mm/min
dispensing system
dispensing gun
maximum speed 5s
location precision +0.05mm
visual location precision +0.2mm
transmission screw balling
Motor Servo motor + driver
Pneumatic mode  SMC  electromagnetic valve
Wortable load 100KG
Valtage 220V  50/60HZ
Power
1.5KW
Machine size 1400*1200*1950mm


Welcome consult with us, we service:

1. Best Solution for your production line

2. Fast delivery for your urgent order.

3. Overseas service is available

4. Mail us immediately  to let us know what you want!


enamel lapel pin dispensing machine, enamel dispensing machine for coins
