Weldo Smart Diamond

Details

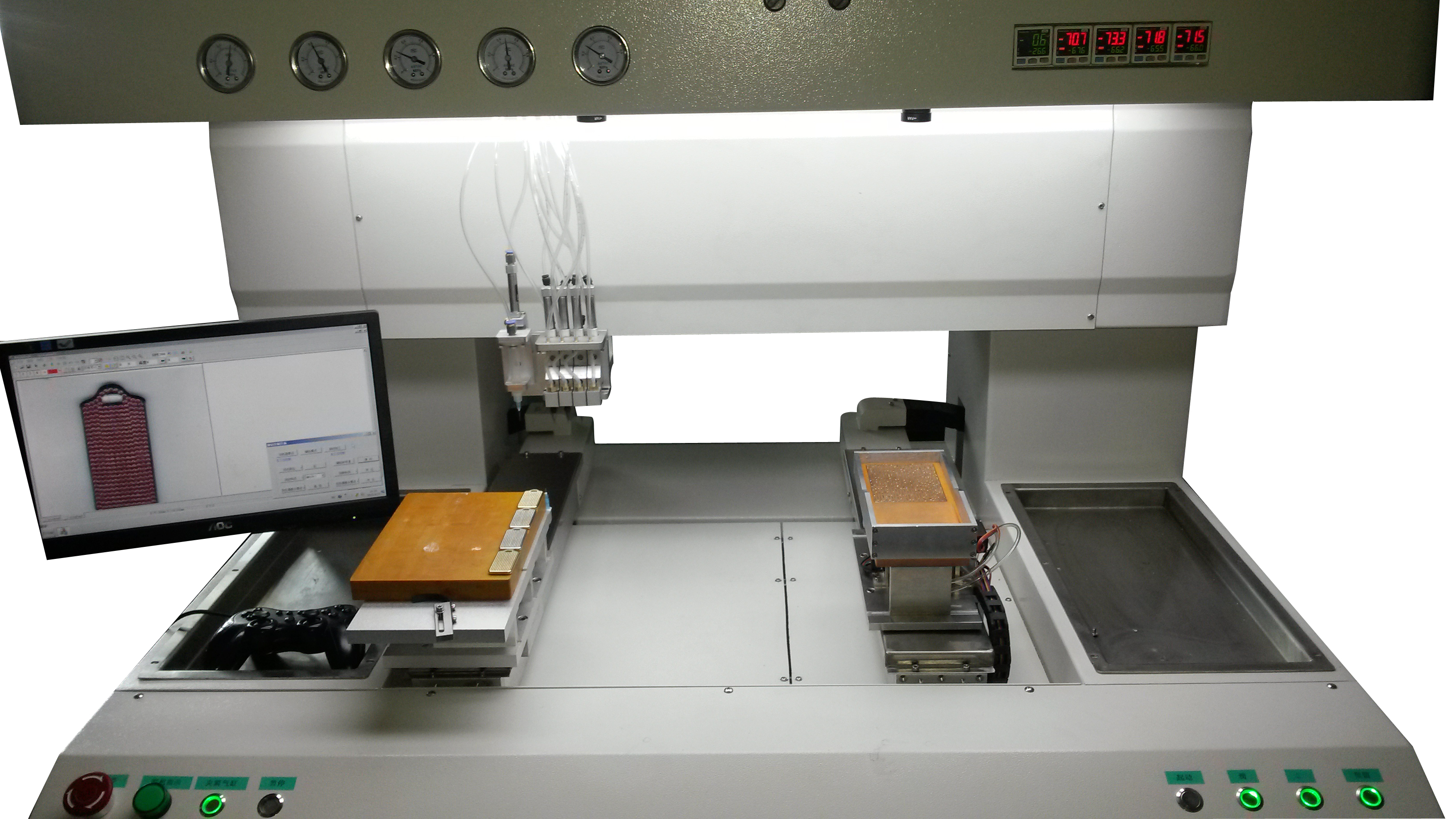

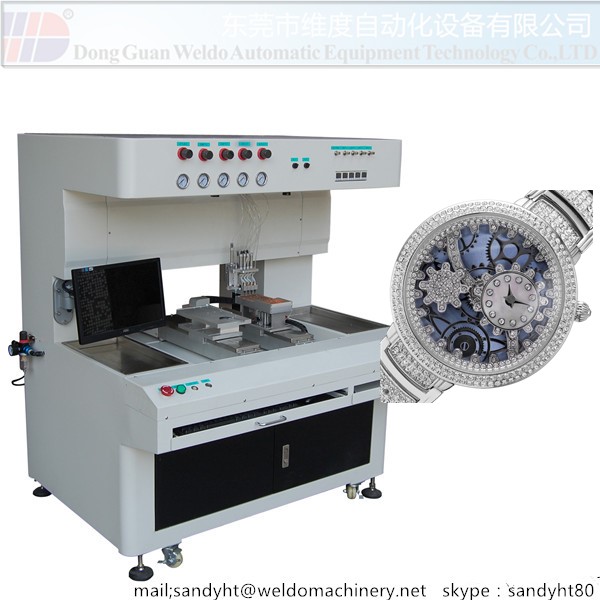

                           Diamond stone dispensing machine for watch


Features:

1.Vision intelligent identifies diamond's position, pron and cons worktable for equal or greather than 1mm diamond;

2.Vision intelligent identifies craft's position and angle. The placement of craft can be arbitrary arranged;

3. 4 Nozzles dispensing together, intelligent optimization diamond taking path, increase of production ;

4. Intelligent identifies missing dispensing, improve diamond dispensing quality ;

5. Glue injection and diamond dispensing are combinded or can be used singly or in combination;

6. High efficient diamond dispensingm, maximum speed can reach 120 pcs/min.



Parameter:

Name                                                   Diamond stone dispensing machine for watch
Model WD-DR6-1
Diamond V-bottom diamond
Control Computer, Window 7 system
Visual system 2 visual systems
Program Software DrawTools(Weldo own software)
Axis  6
working table for craft  X:260mm Y:360mm Z:80mm
Working tabel for diamond X:130mm Y:360mm
U axis(in horizontal) 680mm
Working speed 2 piece/s
diamond size 0.8mm to 4mm
repeated accuracy +/-0.02mm, Double vision positioning system
Transmission  AC servo motor + Rolling screw
working environment

Humidity: 20-90%

temperature:0-40℃

Machine dimension 1180(L)*800(W)*1390(H)mm
Packing size 1340(L)*1040(W)*1520(H)mm
GW  500KG
Voltage and Power AC220V 50-60HZ  2.0KW


Diamond dispensing machine, automatic diamond stond dispensing machine
