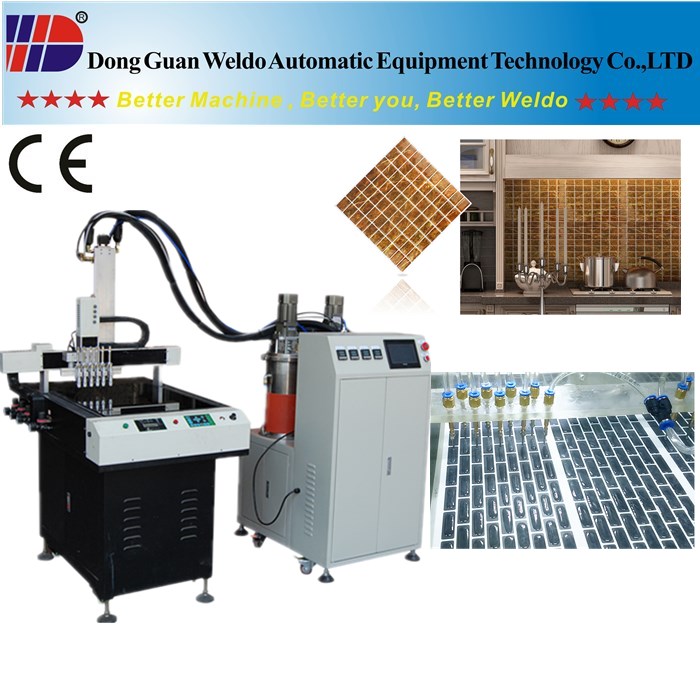

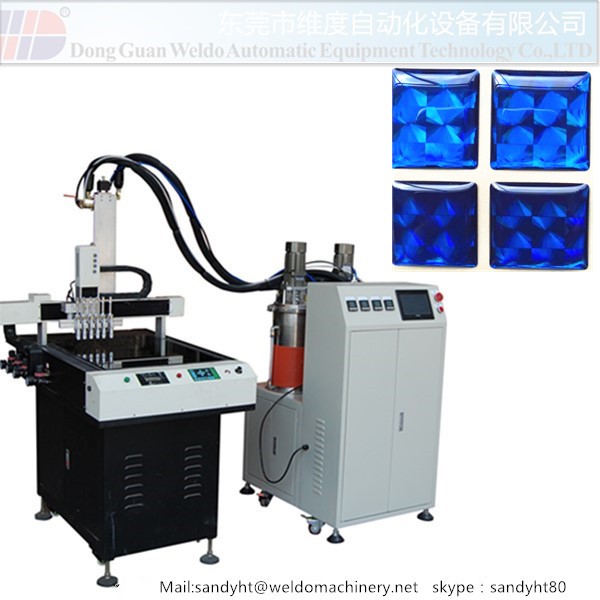

PU doming sticker dispensing machine
Application:
Epoxy Doming sticker , epoxy domed decoration wall , bi-component glue products ect .
Features：
1.Multi-Needles dispensing together, high accuracy dispensing , suitable for any form craft.
2.To process small-size production, manual blending chemical A and B to syringem and syringe installed to epoxy machine to dispense glue wihout proporting pump;
3.Applied to process large-size production and volume orders, installed automatic proporting pump to online blend chemical A and B, blending adjustable ratio is +/- 30%, the opration is more convenient and flexible;
4.Automated proporting pump applied chemical A and B barrels separately , and constant temperature heating device. Automatically clean glue tube , easy lean and operation ;
5. Cusomtized machine is available based on different craft's size.
Technical Specification:
1
Model
WD 500*600 AB
2
Material
bi-component glue , epoxy
3
Running distance
X:450mm, Y:680mm, Z:70mm
4
Working table
X:500mm,Y:900mm
5
Ratio control
gear pump( on mixing machine)
6
Ratio range
3:1 +/-30% ( on mixing machine)
7
Cleaning
Semi-Automatic( on mixing machine)
8
Working speed
30000mm/min
9
Position Accuracy
+/- 0.02mm
10
Analysis Ability
0.001mm
11
Transmission
servo motor+screw balling+square linear rail
12
Input pressure
0.5-0.8Mpa
13
Table Load
5KG
14
Dimension
155(L)*108(W)*140(H)CM
15
Net Weight
282kg
16
Input Voltage
220V AC 50HZ
17
Internal: Voltage
24V DC 5V DC
18
Rated Power
1000W
Gear Pump Technical Specification :
|
1 |
Ratio/Precision |
A:B=100:33.3/±1% |
|
2 |
Driving Mode |
Servo motor and drive |
|
3 |
Stir modes |
Static mixing pipe |
|
4 |
Measurement method |
Precision metering pump ( adjustable±30%) |
|
5 |
Glue glow quantity/Precision |
0.5g/continuous provide glue/±1% |
|
6 |
Input pressure |
0-0.8Mpa |
|
7 |
Input voltage |
220V AC 50HZ |
|
8 |
Internal voltage |
24V DC |
|
9 |
Power |
3000W |
|
10 |
Dimension |
800X600X1350mm |
|
11 |
Net weight |
150kg |
Welcome consult with us, we service:
1. Best Solution for your production line
2. Fast delivery for your urgent order.
3. Overseas service is available
4. Mail us immediately to let us know what you want!
