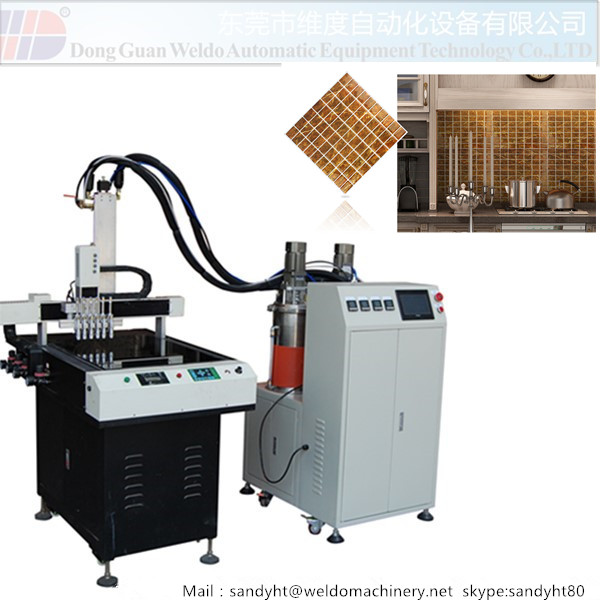

Bi-Component Automatic Dispenser Machine for vinyl
material decoration wall
Application:

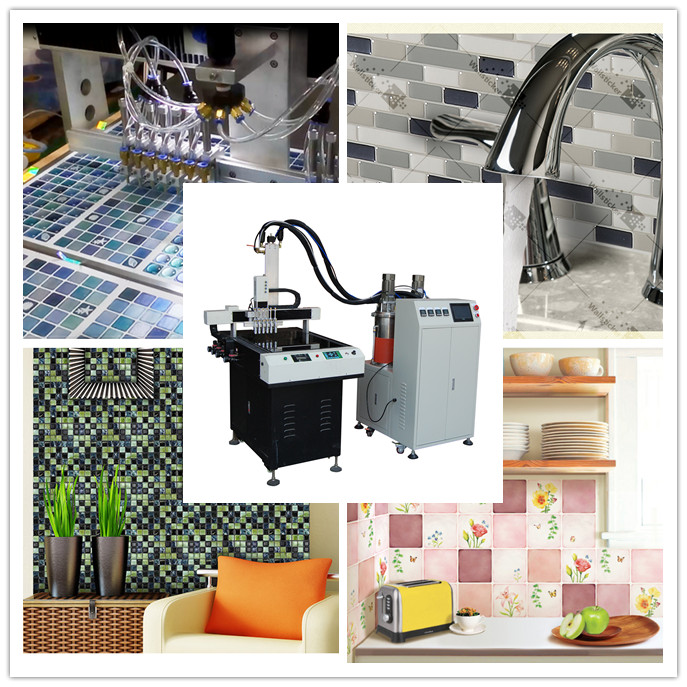

Epoxy Doming sticker , epoxy domed decoration wall , bi-component glue products ect .
Features：

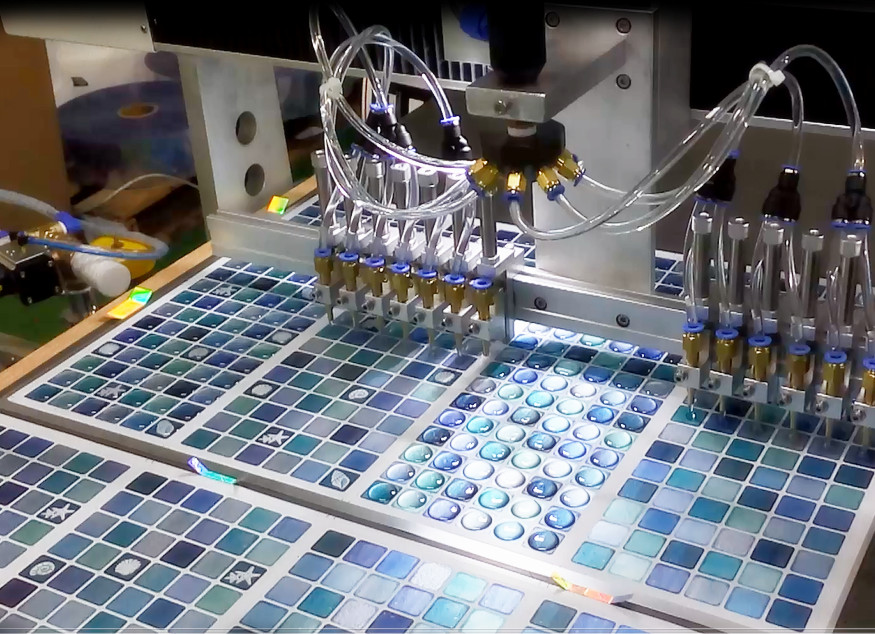

1.Multi-Needles dispensing together, high accuracy dispensing , suitable for any form craft.
2.To process small-size production, manual blending chemical A and B to syringem and syringe installed to epoxy machine to dispense glue wihout proporting pump;
3.Applied to process large-size production and volume orders, installed automatic proporting pump to online blend chemical A and B, blending adjustable ratio is +/- 30%, the opration is more convenient and flexible;
4.Automated proporting pump applied chemical A and B barrels separately , and constant temperature heating device. Automatically clean glue tube , easy lean and operation ;
5. Cusomtized machine is available based on different craft's size.
Technical Specification:
|
1 |
Model |
WD 500*600 AB |
|
2 |
Material |
bi-component glue , epoxy |
|
3 |
Running distance |
X:450mm, Y:680mm, Z:70mm |
|
4 |
Working table |
X:500mm,Y:900mm |
|
5 |
Ratio control |
gear pump( on mixing machine) |
|
6 |
Ratio range |
3:1 +/-30% ( on mixing machine) |
|
7 |
Cleaning |
Semi-Automatic( on mixing machine) |
|
8 |
Working speed |
30000mm/min |
|
9 |
Position Accuracy |
+/- 0.02mm |
|
10 |
Analysis Ability |
0.001mm |
|
11 |
Transmission |
servo motor+screw balling+square linear rail |
|
12 |
Input pressure |
0.5-0.8Mpa |
|
13 |
Table Load |
5KG |
|
14 |
Dimension |
155(L)*108(W)*140(H)CM |
|
15 |
Net Weight |
282kg |
|
16 |
Input Voltage |
220V AC 50HZ |
|
17 |
Internal: Voltage |
24V DC 5V DC |
|
18 |
Rated Power |
1000W |
Gear Pump Technical Specification :
1
Ratio/Precision
A:B=100:33.3/±1%
2
Driving Mode
Servo motor and drive
3
Stir modes
Static mixing pipe
4
Measurement method
Precision metering pump ( adjustable±30%)
5
Glue glow quantity/Precision
0.5g/continuous provide glue/±1%
6
Input pressure
0-0.8Mpa
7
Input voltage
220V AC 50HZ
8
Internal voltage
24V DC
9
Power
3000W
10
Dimension
800X600X1350mm
11
Net weight
150kg
